How to install the radiator? You have to know these little things!
Publisher:adminRelease Time:2020-02-22

After the frost, the North and south of the cold, warm must be put on the agenda. The radiator can be installed in 1 day, the old room can also be installed, is a good choice. For a better heating effect, these installation tips are not to be missed.

暖气片

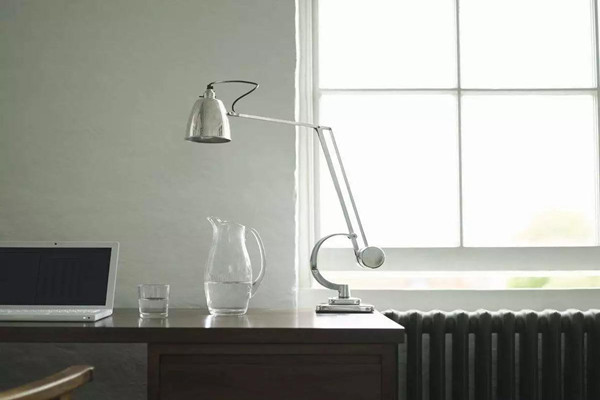

In theory, when we measure the temperature in a room, it should be judged by the temperature measured by a wet bulb thermometer 1.5 m above the ground in the center of the room, in this way, we can simulate whether the temperature that people feel when they are in the room is up to the standard of comfortable temperature. Radiator heat transfer principle is convection heat transfer, first heating indoor air, and then air transfer heat to the human body, body surface feel warm. But the heating effect of the radiator is not only determined by its own material and structure, but also by the indoor wind field and pressure field, so its installation location is also quite important. The radiator common installation position according to the recommended order has the window, the window edge, the door behind, the interior wall these places. Installed in the window, such as the bedroom area is not large but requires a high degree of heating comfort room, generally recommended to install the radiator under the window, the main heating quickly and balance the room temperature.

暖气片

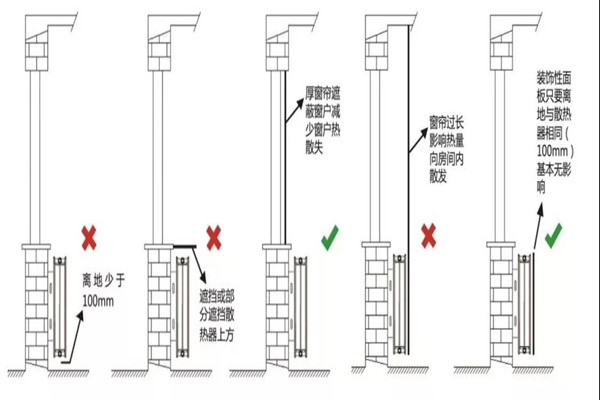

In the process of convective heat transfer, the larger the temperature difference between the heated object and the heated object, the higher the air velocity, the greater the rate of heat conduction in the heat transfer process. In the building, the thermal conductivity of windows and doors is very large (easy to dissipate heat) , and there may be a certain amount of cold air infiltration in the gaps. Place the radiator under the window where the temperature difference is biggest, the air velocity is biggest, so in the unit time, the radiator can send out the most heat to the room, make the room quickly warm up. The cold air in the equilibrium greenhouse mainly comes from the doors and windows. Because of the density of the cold air, the cold air entering the greenhouse will linger on the ground. Therefore, isolating or heating this cold air will greatly improve heating comfort. In addition, because of the intervention of cold air, the hot air above the radiator is cooled and increased, which can reduce the baking feeling when the user stands next to the radiator under the premise of ensuring heat dissipation. Installing the radiator under the window needs to pay attention to some details. First, the radiator needs to be 10 cm + above the ground, so as to ensure smooth air flow in the lower part, and the radiator above is recommended to be 10 cm + shorter than the window sill, so that a hot air curtain can be formed and cold air can be effectively mixed. Secondly, use period must avoid radiator is covered by thick curtain, affect heating effect thereby.

暖气片

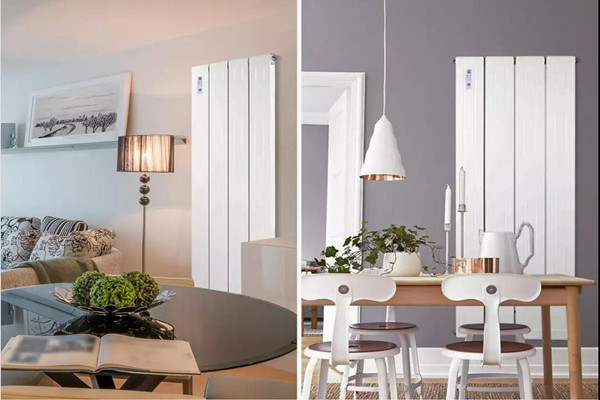

Installation in the door, the wall in real life, such as the living room with floor-to-ceiling windows is obviously not suitable for the installation of radiators in the window, then how should choose the appropriate installation location? The recommended installation sequence is the window edge, the door and the inner wall, the door and the window are also the cold air flow stronger area, the installation behind the door also has the good heat dissipation effect, but will be affected by whether the door frame size and decoration style match or not. Install behind the door and inside the wall, you can take some small skills, try not to affect the aesthetic at the same time play a good cooling effect.暖气片

In the living room, can use 900mm height radiator to replace the traditional window of 600mm height, to avoid the wall too crowded. In addition, by virtue of the area advantage of the inner wall, two groups of relatively short radiators are placed at opposite corners to replace one group of long radiators, and the heat dissipation effect is not much. Installation in the bathroom to choose the bathroom radiator should focus on its material corrosion resistance, generally from the appearance of the structure will choose the basket-style. The utility model has the advantages that besides heating, the utility model can also hang towels or clothes, which is convenient for bathing and at the same time makes the whole toilet more neat and refreshing. For the bathroom, the radiator will be hung on the top of the toilet or near the shower. The selection of radiator installation position is also related to heating effect, which needs comprehensive consideration of theoretical knowledge and practical conditions on site. In the choice of installation location before the first full communication with the user, to ensure that beautiful and practical, try to choose the installation in the low-temperature area to enhance the heat transfer. "installation at low temperature will speed up the heat loss" is actually a misunderstanding, the radiator installed at low temperature can improve the heat transfer rate, open source heat dissipation; choose the location to avoid the impact of the home environment on heat dissipation, ensure the smooth flow of hot air, do not over-decorate or have the cover of decorations.

暖气片
